Xenov3 RGB/ Pixel Sound Board Only with SD CARD (Bluetooth App)

Original price was: $50.00.Current price is: $40.00.

Model Number: A216

35 in stock

Purchase this product now and earn 40 Wolf Points! must be login
SKU: XN3-RGB-PXL-SND Categories: , , , , ,
Sale!
Xenon3 Pixel USB with 40 fonts, restocked in the USA.

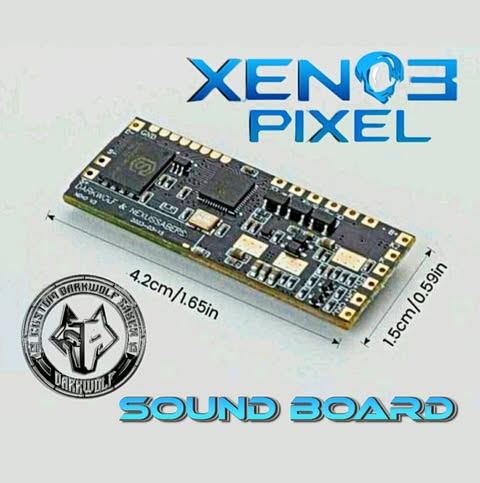

A compact Xenon Pixel sound board with labeled dimensions.

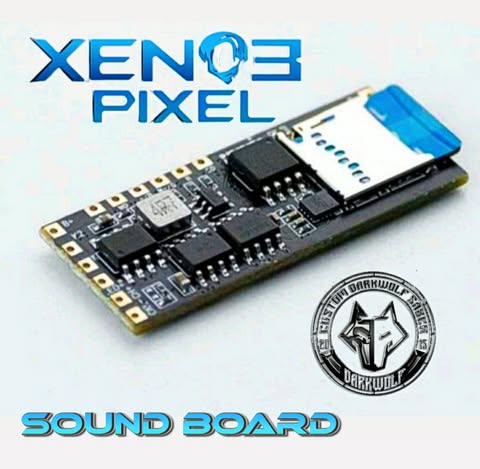

Xenoe Pixel sound board module with SD card slot and connectors.
Xenoe Pixel Sound Board with electronic components and logo.

Description

Introducing NEW Xeno3 RGB/ Pixel Sound Board Only with SD CARD

Board Spec:
Color : Black and Silver
Sd card: Yes recommended 16gb -32gb
connection : RGB LED or PIXEL Capable
Board Dimensions : Length 2.44 x width 0.62 inches
Max Battery : 5v 1A


***WARNING DO NOT USE IPHONE< SAMSUNG or WALL HUBS < PLAYSTATION, XBOX PORTS or Computer USB Ports to Charge. THEY WILL DAMAGE BOARD AND VOID WARRANTY.

Damages caused by customers will be noticeable and not covered in warranty. Any issues contact us to trouble shoot it.
Details
* Mobile App Capable
* Accent Swings
* Smoothswing
* One button configuration
* Programmable 16-32gb Max SD card
* Preprogrammed customizable blade effects
* 37 fonts preinstalled
  • deep sleep adjustment
  • Accent Swings added
  • App controlled color pallete and numeric sync
  • volume app controlled 1-100 dial in
  • bluetooth firmware upgradable via app or via SD card manually
  • RGB/ PIXEL Toggle
  • 1 or 2 Switch capable
  • flash on clash toggle on/off
  • Blade brightness Adjustable
  • Blade length adjustable
  • Crossguard side blade adjustments
  • Side blade delay adjustments
  • Audio Cue for Hilt Commands
  • Gesture Control Adjustable
  • gesture control sensitivity adjustment
  • adjustable light effect timing
  • Blade Mode Toggle on / off
  • blade speed ignition control
  • 11 default blade modes (adding more future firmware)
  • Bluetooth
  • Smooth Swing
  • Multiple colors
  • Blaster Block
  • Tip drag
  • Flash on clash Control
  • Clash Sensitivity Adjustment
  • Multiple Soundfonts
  • Melt
  • Spin
  • Force Effects
  • drag effect.
  • Multiple Bladestyles (more in future firmware
  • postoff
  • preon
  • lightningblock
  • beginlightingblock
  • endlightingblock
  • Stab
  • Pre in
  • side out
  • Multiple ignition styles

WIRING LABELS BELOW FOR INSTALLS

K+ is switch Neutral
L+ is switch led positive
CH+ is 2 pin rechargeport pos
Ch- is switch 2nd neutal/recharge port neg/ switch led neg

Spk – either one for speaker

B+ is battery pos
B- is batt neg

+ is led Module positive
R – RED NEG
G – GREEN NEG
B – BLUE NEG

FUNCTIONS LIST and Support Page:

https://darkwolfsabers.com/xeno3-pixel-a-rgb-support

Additional information

Weight 0.1 lbs
Dimensions 9 × 5 × 2 in
